Specially designed for high-intensity training zones – functional, safe, and thoughtfully engineered. This flooring features an easy-to-clean protective surface lamination, integrated foam cushioning, and air chambers on the underside that significantly reduce noise and vibration – creating a quieter and more comfortable training environment.
For clean and secure installation, matching ramp and corner elements are available. Additionally, the construction allows for discreet cable routing in the gaps beneath the flooring – ideal for modern studio setups with integrated technology.

Solving Noise Issues and Inadequate Flooring in Urban Gyms
Fitness studios in central locations often face challenges with noise complaints from neighbours living or working in the same building.
The impact noise caused by dropping weights can lead to dissatisfaction and even legal disputes. In many cases, the existing screed floor is not designed to withstand such loads, which can result not only in excessive noise but also in structural damage.

DHZ Offers an Affordable Solution
At DHZ, we’ve developed a cost-effective solution to address these challenges.
Our sports flooring minimizes noise and protects the subfloor from damage – leading to better relationships with neighbours and a longer lifespan for your studio’s infrastructure.

Installation Recommendation
We recommend installing the tiles in a staggered pattern to ensure a more stable and secure flooring structure.

Dimension:
– Plate: 500x1000mm

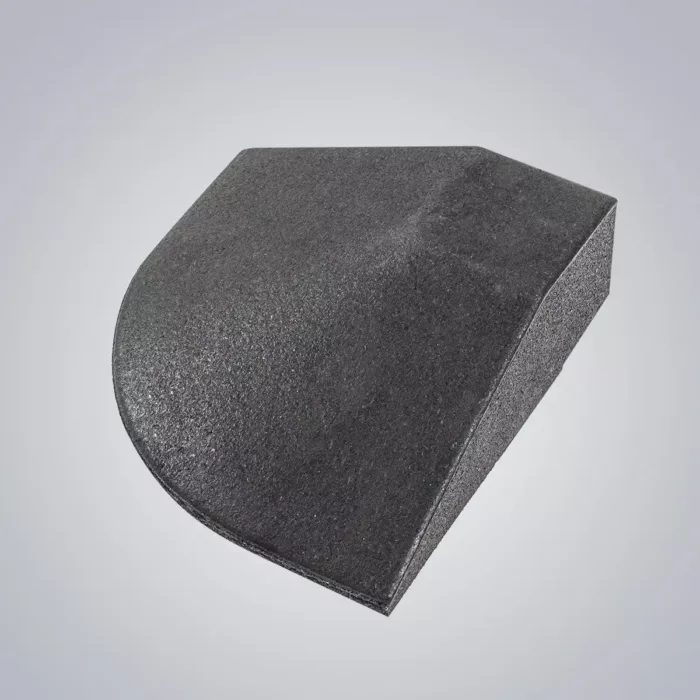

– Corner: 147x147mm
– Ramp: 500x147mm
Thickness: 50mm

Material Surface Layer: SBR + EPDM – Density of 1200kgs/m³
Subbase: Recycled SBR granules – Density of 1000kgs/m³

PU adhensive
Shock absorption ( EN14808): 58.6%
Slip resistance (EN13893):
– Machine direction: 0.67
– Across machine direction: 0.69

Hardness: 55±5ShA
Tear Strength: 23kN/m
Wear resistant (EN5470-1): ≤560mg
Fire Behaviour (EN 13501): Efl
Features:m
– Water and frost resistant
– Anti-slip
– Suitable for indoor use
– Impact and noise absorbent
– 100% recyclable
